Name: Frameless Triangular Skylight 1000 x 1000 mm, Frameless Triple Glazed, UV 0.9
Brand: Skylights1
SKU: frtr1000x1000mm
Availability: InStock

Description

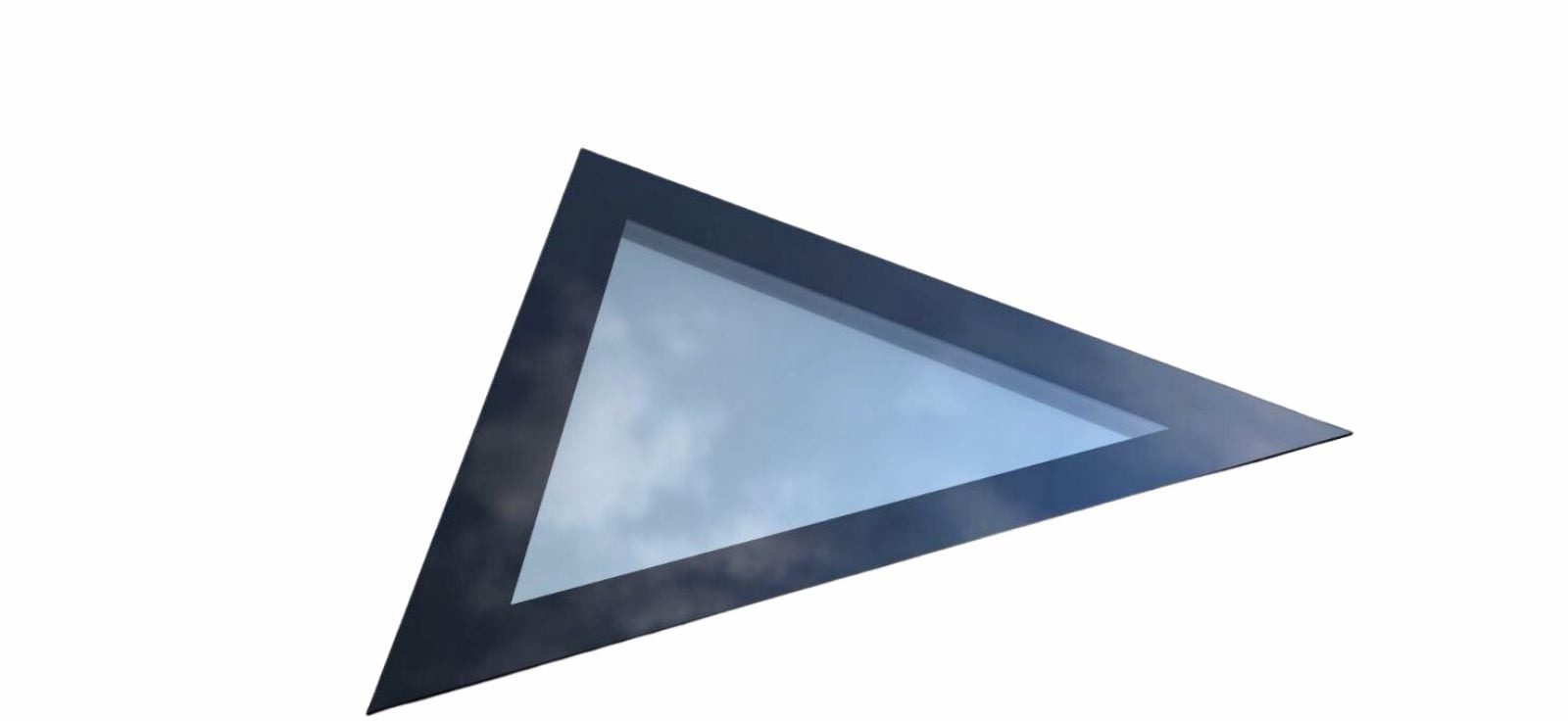

Frameless Triangular Skylight
1000 x 1000 mm

Our premium non-opening frameless skylights are triple glazed with 6mm toughened, self-cleaning glass and a U Value of only 0.9 W/m²K.

Explore the possibilities of your home with a beautiful, custom skylight that’s superior to all others. The unique triple-glazed, insulated design of our flat roof windows creates a natural, energy-efficient environment.

Windows for flat roofs are well-suited to the low-angle sunlight that often falls on them. They can be mounted easily in the construction phase and are resistant to high levels of humidity.

Frameless Triangular Skylight 1000 x 1000 mm is designed for your home, allowing you to capture the world’s beauty for yourself and for your family.

Enjoy natural light in your home with a clear view of the sky!

When it comes to choosing a roof light for your home, we know that safety is an important deciding factor. This product conforms to British Standards & Building Regulations and has all Safety Markings. It is CE marked which is a certification mark that indicates conformity with the relevant EU directives and standards for products sold within Europe. Our Skylights can be installed at a maximum pitch of 45 degrees.

Have you made your choice or are you still hesitating between different types of roof windows?

If you are looking for custom design solution, Skylights1 can make custom size skylights that vary from our standard sizes and suit your required dimensions.

Skylight Specifications

Glazing Type: Triple Glazed
U Value: 0.9 W/m²K
Self-Cleaning: YES
20 Years Warranty
Safety Toughened Glass
Top Glass Pane: 6mm BS EN 12150 Thermally Toughened Glass
Middle Glass Pane: 4mm BS EN 12150 Thermally Toughened Glass
Bottom Glass Pane: 6mm iPlus Thermally Toughened Glass

Internal Glass Size: 1000 x 1000 x 1414 mm
External Glass Size: 1341 x 1341 x 1897 mm
Net Weight: 26kg
Clear Tint
Аll Glass Panels
Spacer Type: 15mm Black Warm Edge
Air Gap: 15mm 90% Argon Filled
3xMore Light Than Other Brands

Additional information

Weight	26 kg
brand	Skylights1
manufacturer	Skylights One Ltd
Size	1500x3000mm

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Frameless Triangular Skylight 1000 x 1000 mm, Frameless Triple Glazed, UV 0.9”

Shipping & Delivery

All our shipping is Free of charge on orders over £400 within the London (M25) Area.

All standard sizes Flat & Pitched Skylights are delivered between 3 to 6 working days.

All Custom Size orders take 3 to 6 weeks to be produced and shipped over to the UK. They are free of delivery fees.

Roof Lanterns delivery is within 10-14 working days from the day the order was placed.

Framed Skylights delivery is within 10-14 working days from the day the order was placed.

Electric Opening Skylights delivery is within 10-14 working days from the day the order was placed.

Walk-On Skylights delivery is within 10-14 working days from the day the order was placed.

Skylight Blinds delivery is within 10-14 working days from the day the order was placed.

Monday to Friday from 8 am until 5 pm.

We will contact you to arrange a suitable delivery time, once payment has been processed.

Please add to cart the products you want and enter the shipping address to view delivery cost.

Our own drivers deliver within London (M25) in order to guarantee the safe arrival of all our products.

Please be aware that as our drivers are alone and pre-loaded in our warehouse, we will require you or your builders to be on-site for the acceptance of all orders.

For orders outside M25, we use an external shipping network. Once sent, they will call you to book a suitable date and time for delivery.

The Extra Economy Shipping options work for all areas, except Northern Ireland and Scotland.

Some of these companies may not have the correct vans in place and might not be able to deliver to your door, so we might have to ask you to pick it up from the local depot (usually within 20 min drive) however this is rare.

Most of our products weigh a considerable amount varying from 10kg to 280kg, therefore it may need more than two, four, or even six people to unload depending on the size and weight of your product.

We will not accept liability for any broken skylights during the unloading process, as it is down to the customer to organise this process.

In the event that the customer does not attend the delivery appointment or no one is there to accept your product, we will try and contact you via phone, text, and voicemail before our driver leaves your delivery address.

If no contact is made, we will have no option but to return your product to our warehouse.

Installation Guide

Skylight Windows
Installation Guides

At Skylights1, our rooflights go beyond the ordinary. They combine beauty, energy efficiency, and innovation, making them some of the best on the market. Now, with our easy installation guides, you can set them up yourself, regardless of your opening’s size.

Say goodbye to complicated installations!

Our skylight installation guide provides clear and concise instructions to help you easily install our range of roof windows. From flat roof windows to pitched roof windows, our guides guide you step-by-step through the process, ensuring a hassle-free installation.

Flat Roof Skylights Installation

Pitched Roof Skylights Installation

Roof Lanterns Installation

Electric Blinds Installation

Structural opening – provided By builder

Bear in mind our Skylights sizes are the sizes of the bottom (internal) glass panel. The top panel is stepped by 100mm on each side, and the overall externally visible size is 200mm bigger in both directions:

For example, only in this guide will we present installation sketches for a Skylight 600mm x 600 mm. For all other sizes, we provide installation sketches in the gallery of each size separately.

Double/Triple Glazed Skylight 600x600mm has the following sizes:

The upstand should protrude a minimum of 150mm above the roof level

A minimum pitch of 8-10 degrees relative to the horizon must be provided to avoid water pooling in the middle of the glass panel (for every metre of Skylight a 10cm fall is required). It is worth spending a few extra minutes before applying the silicone to run a water test to ensure the water is not pooling (even though you are installing glass it will still bend in the middle). The internal distance upstand to upstand needs to be 10mm bigger than the quoted skylight size (in our example: 610mm by 610mm).

Upstand opening should allow for 5mm tolerance on each side:

Skylight Support – provided By builder

Install the support in such a way that the top of support is as follows:

-Triple Glazed Skylight – 46mm below the top of upstand

The Skylight support is a 25x50mm (2”x1” ) timber:

Weather the upstand

Apply the roof covering material to cover the external face and top of the upstand.

Make sure all surfaces where the silicone will be applied are clean of dirt, dust, moisture, etc.

Apply the foam rope on top of the 2”x1” timber support to level off any discrepancies which will prevent any pressure and stop cracking on the bottom glass laminated pane. THE WARRANTY WILL BE VOID IF A FOAM ROPE IS NOT USED.
Apply, generously, on top of the upstand weatherproof sealant, usually, 1 tube is enough for 6 linear metres.
Lower the skylight with suction cups, and make sure you check the load on each cup.
Apply waterproof sealant on the underside of the overhang and smooth it over once more to make sure it is watertight.

Once you finish weathering the upstand, you are ready to install the Skylight.

Video Presentation
Installation Guides

Installation
Accessories

Easily complete your skylight installation with our range of high-quality skylight installation accessories.

Foam Rope

Weatherproofing Sealant

Smooth Lead Flashing

Textured Lead Flashing

Weatherproofing Sealant (Silicon) – DOWSIL™ 791, 310ml

Accessories, Additional Accessories and Sensors

Rated 0 out of 5

In stock

£15.40 incl. VAT

Add to basket

DOWSIL™ 791 Weatherproofing Silicone Sealant is a one-part, low modulus, neutral curing weatherproofing silicone sealant designed for both commercial and domestic applications. It provides excellent unprimed adhesion to most porous and non-porous surfaces.

Frequently Asked Questions

What guarantees and warranties do you offer?

We offer a 20 year seal warranty on all our skylights.

Tristique parturient nulla ullamcorper at ullamcorper non orci iaculis neque augue.

What does the warranty cover?

Our warranty is CE certified and meets European standards. As long as you install your skylight unit as per our instructions, the warranty is valid for twenty years. This covers you for any defects or damages, and we offer an aftercare service.

How can I get a price?

All our Skylight prices are on our product page. Discounts may be given if an order is above £2/5000 given as a trade price. Please contact our Customer Support Team for more information if you wish to make a large order so we are able to give you a discount code.

Can I collect my Skylight in person?

Yes, you can! Once you have placed and paid for your order, please get in touch with our Customer Support Team who will arrange someone to prepare your order for collection.

May I calculate the delivery costs to my location?

Yes, you can, if you go through to checkout, it will work out the delivery costs and options without placing an order.

Do you do the installation as well?

No, we do not install. We only supply the skylights. We recommend looking for a reputable roofer within your area who can carry out the installation professionally.

Do your skylights open and close?

Yes, we offer fixed and openable skylights.

What is the max Ug-Value?

The maximum value our skylights has is 0.9 W/m²K

Can I have blinds on my Skylight?

Yes, you can have them installed once your skylight is fitted! As the installation of blinds behind the glazing increases the risk of Thermal Stress Glass Breakage, we advise you to install the blinds at a minimum distance of 150 mm from the glass.

Will it be noisy if it rains?

All our Skylights come triple-glazed which provides optimum sound insulation. This, in turn, would help minimise any rain noise. The more panes of glass, the better the noise resistance and the greater the distance between each glass, the better your sound insulation will be. All our skylights are designed with these factors in mind. We offer triple glazed skylights with 6mm toughened safety glass as standard and a generous 15mm gap between the panes and bottom. Panes are 8mm thick reducing noise to maximum.

Where are your skylights sourced from?

Our skylights are manufactured in Europe.

What makes us different from the rest of the market?

Skylights1.co.uk guarantees in supplying top quality products at the Best Price, due to manufacturing and delivering everything in house.

What accessories will I need?

Do these come as standard or do I need to order them separately? You will need foam rope, weather proofing silicone and flashing kits along side your skylight. We have all of these on our website so you can order everything you need from us so you are ready to go.

Can I get next day delivery?

Yes, we offer express delivery to most postcodes. Please check this service on our website or give us a call.

How Can I Pay for my Skylight?

We accept PayPal, Credit and/or Debit Cards (Stripe), Google Pay, Amazon Pay and Direct Bank Transfer. You will see these payment methods offered to you upon check out. Unfortunately, we only accept payment in advance.

What pitch should my flat-roof skylight be?

It is important to have your skylight installed at a slight angle relative to the horizon to allow water to run off the glass and avoid pooling. We recommend setting the rooflight at an angle of 45°. It is worth it to spend a few extra minutes before applying the silicone to run a water test.

What is the lead time for items in stock?

Lead time depends on the size of the unit and the exact location in the UK, please add the item to your card and your delivery postcode and you will see all delivery options to your location-keep in mind that you will not be charged at this stage.

What is the maximum pitch for these skylights?

Minimum 6, maximum 45 degrees.

How do I place an order? Can i do it over the phone?

The website is the only place to place an order, and we don't take orders over the phone- but we are always contactable to answer any questions at any point.

Can I hold off on delivery if I’m not ready yet?

Yes, just let us know any instructions for delivery or delivery dates in the “notes” box during checkout.

Can I apply my own tint?

You can order a tint for your skylight by selecting the option on our custom calculator, we offer a green or blue tinted option.

Will the window need assembling upon arrival?

No, the skylights arrive ready to install (don’t forget to order your accessories separately so you can be ready to go).

Double or Triple Glazed?

Triple Glazed skylights tend to have a better U-Value and Noise Resistance. What this means is that a triple glazed skylight will have better noise reduction properties if you live in a noisy area. The lower U-Value benefit of them is that they have less heat loss. So if you plan on having a larger skylight or more than one skylight on your extension letting in more natural light we would recommend going for triple as it will save you on your energy bills and lose less heat.

Double Glazed Skylights tend to be lighter in weight and easier for installations however they are not as good on heat loss and noise reduction as triple.
